How to replace the battery latch on Commander 3xl

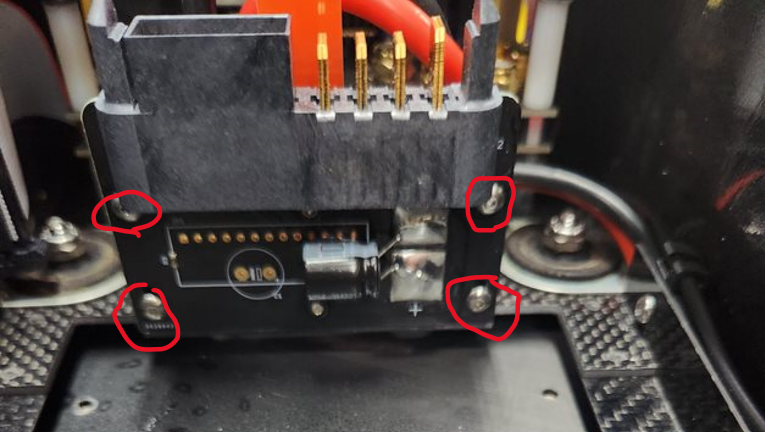

1. Remove the 4 bolts holding the battery connection board down. Throw away the old nylon locking nuts. When replacing this use the new nuts provided.

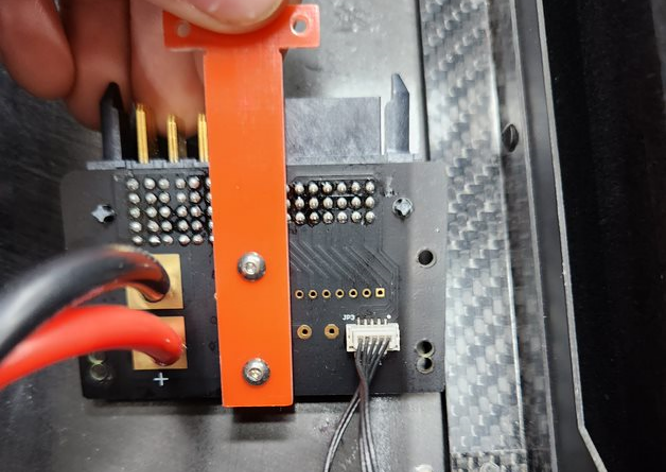

2. Remove the 2 bolts holding the Orange tab in place.

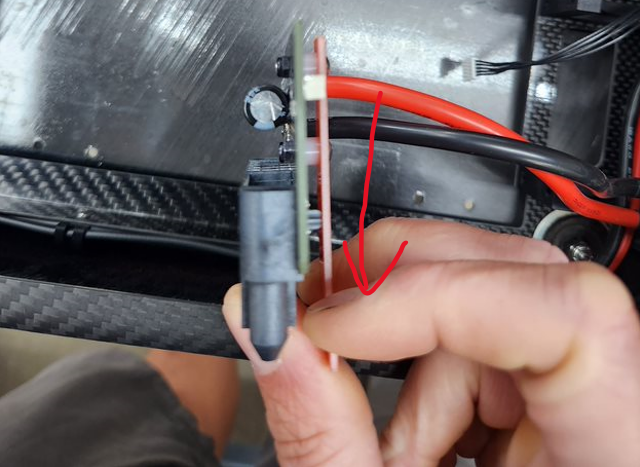

3. Replace the broken tab, be sure to pull the latch upwards while tightening as there is little tolerance when latching in the battery once installed.
4. Reattach power board into aircraft.
